Belleville washers, also called cupped spring washers or Belleville disc springs, have a conical shell and are shaped like a washer but with added height. Their unique shape allows them to support heavy loads with comparatively minor deflections. Belleville washers and disc springs are used in multiple applications and industries. Some examples are valve actuator assemblies, fail safe breaking, and consumer power tools.

Belleville washers and disc springs illustration

Custom Manufacturing

Custom Bellevilles & Disc Springs

For almost 50 years, MW has been a leader in custom precision disc springs, and Belleville washers, having designed and manufactured thousands of custom disc springs for a range of unique applications. Contact us today to request a quote or learn more about the custom manufacturing process.

Request a Custom Quote
Custom machined components - Belleville washers & disc springs

Belleville Washer and Disc Spring Manufacturing

Put our experience to work for you. If your application needs an engineered solution due to special environmental conditions, tight space requirements, or service life expectations, we are here to help. Together, we will optimize the performance of your system by providing insight into manufacturing methods that minimize your cost.

In addition to custom designs, we offer special packaging of disc springs including stacking, to make your final assembly operation more efficient.

MW Components Manufacturing Team Member

Related Manufacturing Services

We have decades of experience in manufacturing Belleville washers and disc springs and have access to both industry standard and cutting-edge manufacturing technology. Below are a few examples of manufacturing services that you’ll have access to within our facilities.

Finishing Services

From heat-treating and precision cutting to pre-stacking and packaging—we work with your team to provide the finishing and packing services that your products need to perform their best.

  • Heat Treatments
  • Laser Etching
  • Kitting
  • Packaging

Quality Materials

We are constantly testing new materials, and as a result we offer superior metallurgical capabilities and quality standard and specialty materials.

About Disc Springs & Belleville Washers

  • Overview

    A disc spring is sometimes called a “Belleville washer” after the inventor. Disc springs consist primarily of a convex disc supported at the outer periphery by one force and an opposing force on the center of the disc. They are used singly, or in stacks, to achieve a desired load and travel.

  • Advantages & Options

    The advantage of a disc spring is that it generates high force in a very short spring length and with minimal movement when compressed. All our disc springs are subject to exacting manufacturing and quality control standards. All discs are preset so that they will not significantly relax under load over time. We also offer pre-stressed disc springs specifically sized for use with bolts.

Stacking Belleville Washers & Disc Springs

When to Stack Disc Springs

Belleville washers and other disc spring styles can be used singly or in stacks to achieve a desired load and travel. In general, they function best under conditions requiring a very high load in confined space or short travel. Under these constraints, it is often not practical or even possible to use a coil spring. In disc spring stacks, particularly those with parallel units, friction should be considered. Sliding friction is created at the disc’s adjoining, moving surfaces. As a result, the deflection which occurs when loading a stack of discs will lag as the stack is unloaded (hysteresis). This characteristic may be taken advantage of in shock or oscillatory loaded systems needing damping.

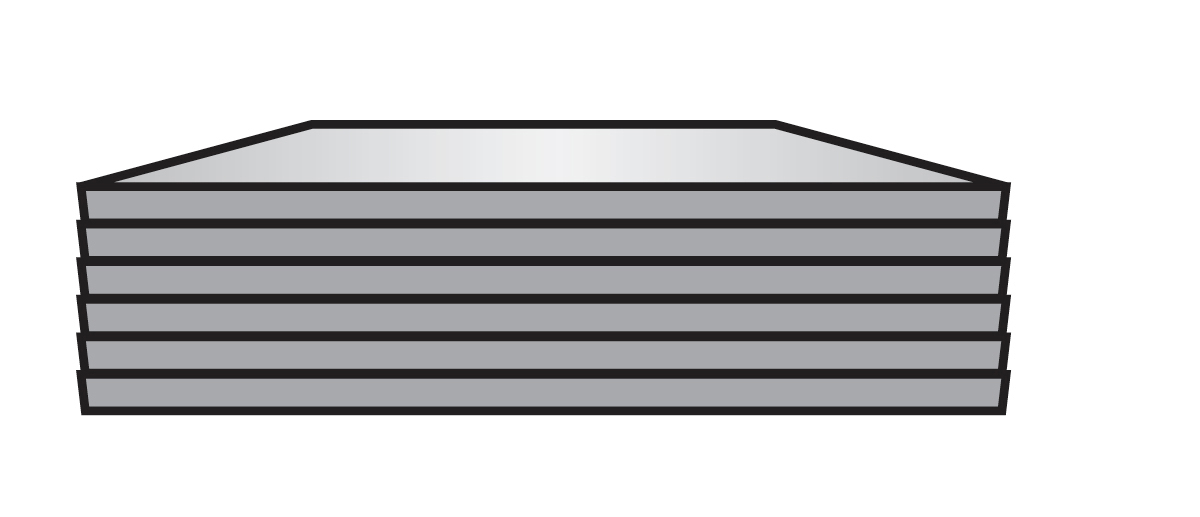

Parallel Stack

If you stack 6 discs in parallel, you gain 6 times the load capacity of a single disc, but your maximum deflection is that of a single disc. For example, using part# CDM-63203, you would achieve a total load of 222 lbs (37×6), an O.H. .078″, but a deflection of .006″.

Series Stack

If you stack 5 discs in a series, you achieve 5 times the deflection of one disc, but the same load as a single disc. For example, using part# CDM-63203, you would achieve a total load of 37 lbs, an O.H. of .089″, and a total deflection of .030″.

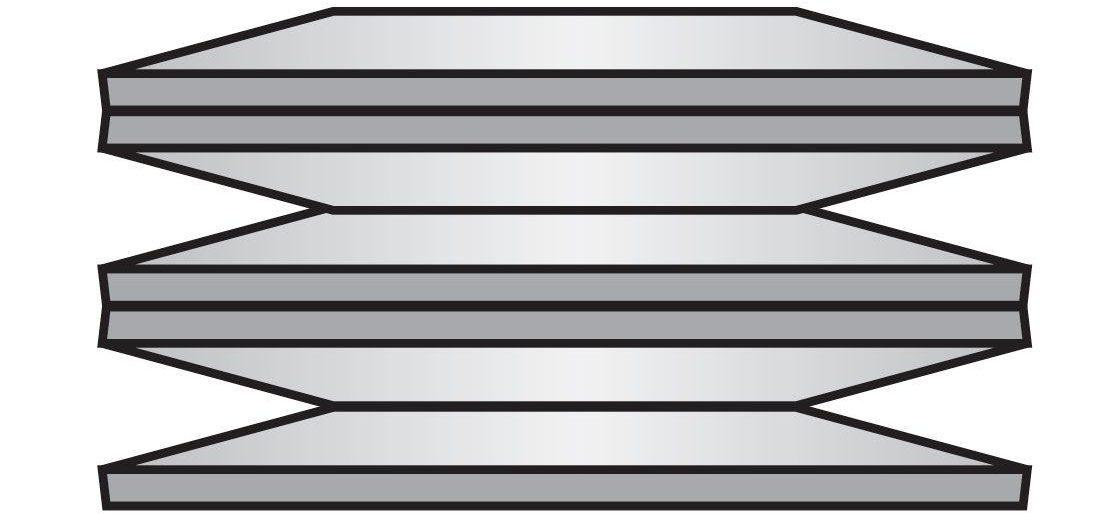

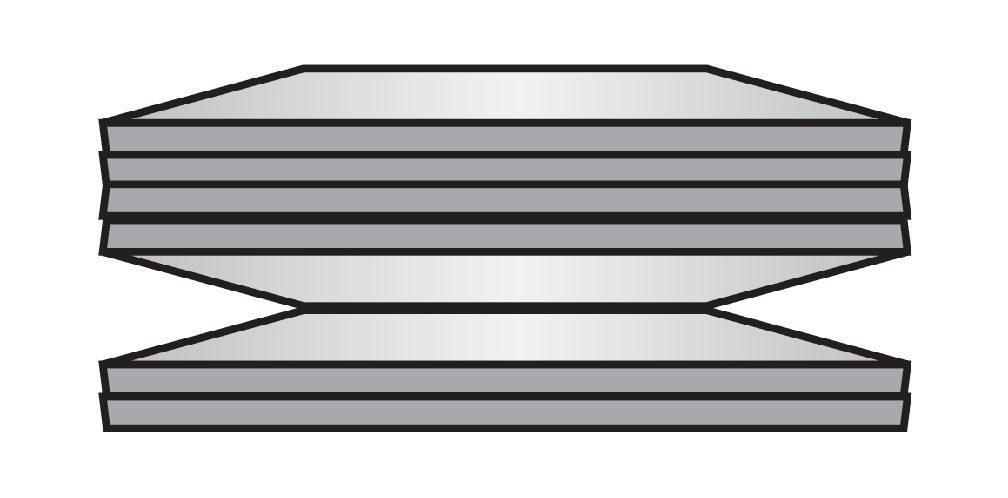

Mixed Stacking – Parallel & Series

Belleville washers stacked in series and parallel in combinations can be arranged to produce almost any load-vs.-deflection trend that you need (linear, progressive, regressive, etc.)
