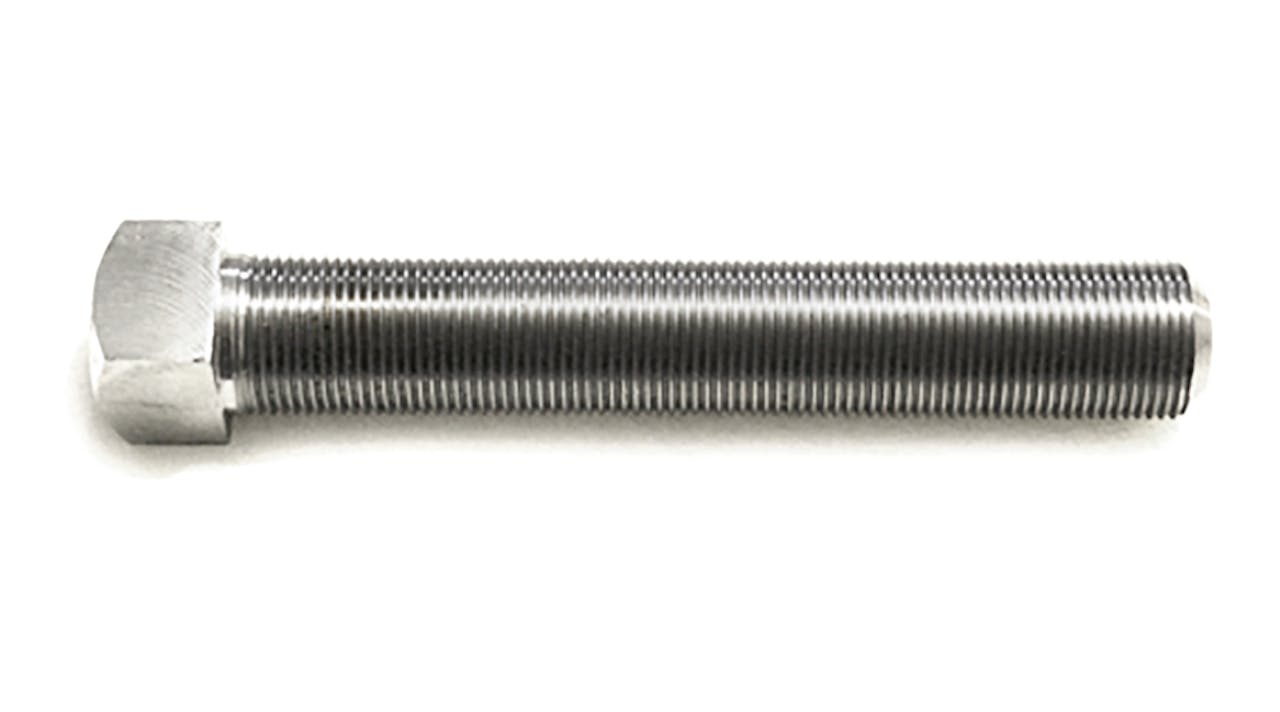

Bolts
MW Components produces bolts, including long and extra-long bolts, with various head styles and thread types. Some of the driver types we support include 6-lobe, 6-lobe-slotted combo, hex washer, combo square drive, one-way, Phillips, slotted, square drive, and others.
Industrial bolts are heavy-duty fasteners used for industrial-strength applications. Some bolt types include anchor bolts, blind bolts, carriage bolts, elevator bolts, eye bolts, flange bolts, hanger bolts, and hex bolts.
LONG BOLTS
Cold-Formed Long Bolts for Extra Strength
We offer long bolts, and extra-long bolts that are perfect for utility, motor, industrial, telecom, and other applications. Available in standard diameter and lengths up to 86" long, our long bolts are made of steel (low carbon, alloy, or stainless) in a wide range of grades.
Our bolts are cold formed. With open-die cold forming, the resulting product is extra strong and extra straight at extra-long lengths. Types of long bolts we offer include thru bolts, cable reel bolts, and motor bolts.
MW Components has the capabilities to produce high-quality, durable, strong, and straight long bolts with precision, accuracy, and repeatability, even at high volumes. Our processes help you get the right bolt for the job while reducing costs.
We are here to help you find the right long bolt right now.
CUSTOM MANUFACTURING
Custom Bolts
Our facilities have been producing bolts for decades and can fulfill both small and large order quantities alike. They house state-of-the-art equipment capable of providing various production services to produce the perfect bolt for your application. From slotting and rolling to trimming and heading, we can do it all. Not to mention a team of devoted engineering and subject-matter experts ready to assist you with design, tooling, prototyping, and performance testing.
We even offer specialty thread patterns and configurations, including the patented MAThread® thread design. Fasteners produced with MAThread® threads are self-correcting and make damage and seizing impossible.
Send us your specs or configure a part.
Bolt Types
MW Components offers nearly unlimited custom manufacturing capabilities for bolts of all types and sizes. See below for some of our most popular bolt types. Don't see what you need? Contact Us. We offer many other types of bolts as well as additional materials and custom configurations.
12 Point Bolts
The 12 point design offers up to 21% greater clamp load in an equal size head. Great for high pressure applications such as turbines, utility infrastructure, and engines.
Diameters
Standard: #4-1-1/4″
Metric: M3-M30
Lengths
Standard: 3/16″-10″
Metric: 5mm-2540mm
Grades: 10.9, 12.9, 2, 4.6, 5, 5.8, 8, 8.8, 9.8, B7, L9, Non Ferrous
Materials: Alloy Steel, Exotic, Hastelloy, Low Carbon Steel, Stainless Steel
Motor Bolts
From fractional electrical motors to large utility applications, EFG motor bolts help secure the safety and reliability of your motor needs.
Diameters
Standard: #4-3/4″
Metric: M3-M18
Lengths
Standard: 2-3/4″-86″
Metric: 70mm-2184mm
Grades: 10.9, 12.9, 2, 4.6, 5, 5.8, 8, 8.8, 9.8, B7, L9, Non Ferrous
Materials: Alloy Steel, Low Carbon Steel, Stainless Steel
Method: Open Die Cold Forming
Cable Reel Bolts
The wire and telecommunication industries have stringent requirements for holding their product secure and safe. Our cable reels are a market leader with a wide range of sizes and styles.
Diameters
Standard: #4-3/4″
Metric: M3-M18
Lengths
Standard: 2-3/4″-86″
Metric: 70mm-2184mm
Grades: 10.9, 12.9, 2, 4.6, 5, 5.8, 8, 8.8, 9.8, B7, L9, Non Ferrous
Materials: Alloy Steel, Low Carbon Steel, Stainless Steel
Method: Open Die Cold Forming
Place Bolts
The place bolt asymmetrical design and slotted head makes this unique product great for engine, transmission, and heavy equipment industries. MW offers dozens of materials and sizes of place bolts. Let us help you design your application today.
Diameters
Standard: #4-1-1/4″
Metric: M3-M30
Lengths
Standard: 3/16″-10″
Metric: 5mm-2540mm
Grades: 10.9, 12.9, 2, 4.6, 5, 5.8, 8, 8.8, 9.8, B7, L9, Non Ferrous
Materials: Alloy Steel, Exotic, Low Carbon Steel, Stainless Steel
Method: Open Die Cold Forming
Hex and Hex Flange Bolts
Hex bolts are the heart of the structural fastener market. They are usually paired with a nut. MW offers a wide range of metric and inch sizes with many head heights and flange options.
Diameters
Standard: #4-2-1/2″
Metric: M3-M64
Lengths
Standard: 3/16″-10″
Metric: 5mm-2540mm
Grades: 10.9, 12.9, 2, 4.6, 5, 5.8, 8, 8.8, 9.8, B7, L9, Non Ferrous
Materials: Alloy Steel, Exotic, Low Carbon Steel, Stainless Steel
Method: Open Die Cold Forming
Shoulder Bolts
Shoulder bolts are utilized for many specialized purposes, they are often used in automotive or mechanical applications. The threads stop a distance from the head, leaving a smooth-sided round shaft between the threads and the head. This shaft diameter is usually larger than the threaded portion of the screw allowing it to act as a stop or pivot point.
Diameters
Standard: #2 – 9/16″
Lengths
Standard: Up to 5″
Materials: 300 Series, 400 Series, Alloy Steel, Low Carbon Steel, Medium Carbon
Thru Bolts
Thru bolts are great when you need to span a long distance and require heads and threads. From appliances to motors to other long thin situations, the thru bolt is a great choice.
Diameters
Standard: #4-3/4″
Metric: M3-M18
Lengths
Standard: 2-3/4″-86″
Metric: 70mm-2184mm
Grades: 10.9, 12.9, 2, 4.6, 5, 5.8, 8, 8.8, 9.8, B7, L9, Non Ferrous
Materials: Alloy Steel, Low Carbon Steel, Stainless Steel
Method: Open Die Cold Forming
Carriage Bolts
When you need a finished smooth look but need a grip on the substrate, a carriage bolt is an excellent solution. EFG offers low carbon, stainless, and exotic material versions in a wide range is sizes.
Diameters
Standard: #4-1-1/4″
Metric: M3-M30
Lengths
Standard: 3/16″-10″
Metric: 5mm-2540mm
Grades: 10.9, 12.9, 2, 4.6, 5, 5.8, 8, 8.8, 9.8, B7, L9, Non Ferrous
Materials: Alloy Steel, Exotic, Low Carbon Steel, Stainless Steel
Method: Open Die Cold Forming
Certifications
Available applicable certifications include:
- DFARS
